Heating Pad

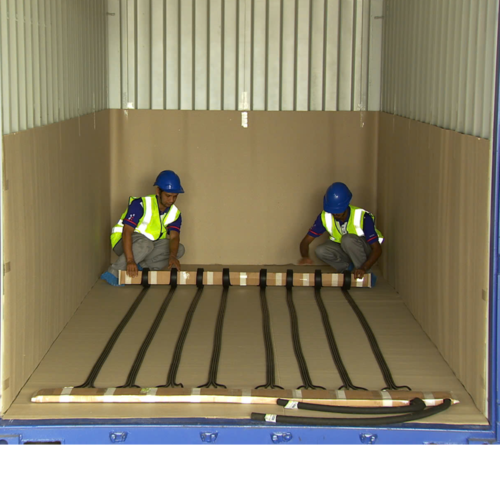

The use of the heat pad is to evenly reheat the cargo before unloading. The heater Pad is placed below the Flexitank (Flexibag) in order to allow maximum exposure to the heat source. The average time it takes to heat up a container of liquid is about 4-6 hours but this obviously depends on the temperature and specific heat of the actual liquid.

Specifications:
Material: EPDM Hose & Steel Manifold
Inner Diameter: Diameter 7mm
Outer Diameter: Diameter 10mm
Operating Pressure: 1.5bars
Operating Temperature: 110℃
Heat Source: Steam
Inlet Connection: Dia. 25mm
Outlet Connection: Dia. 25mm
Layout Dimension: 2.15m (W) x 5.4m (L)
Weight: Approximately 21kgs

---
